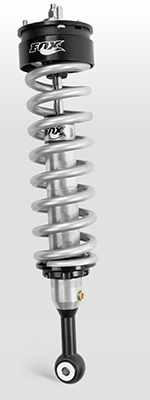

Fox's bolt-on, F-150 Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The F-150 specific upper mount includes a composite bushing that isolates noise and vibration. Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your F-150 front-to-rear. Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, 2.0 Performance Series Coil-over IFP provides a comfortable on-road ride and predictable offroad handling in even the toughest conditions.
Body 2.0" Metal impacted 6061-T6 aluminum will resist rust over time
Body Plating Clear-anodized for a durable finish
Internal Reservoir Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving F-150 specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bearing Large diameter, heavy-duty spherical
Note: Coil over spanner/wrench required to adjust ride height
Product Benefits:
- Adjustable height in infinite increments up to 2.5"
- Superior ride and no fade off-road performance
- Increases ride height, under chassis clearance, and allows larger diameter tires
- Sold individually must purchase pair, rear Fox shock 214 770928F-9 recommended
WARNING: California Residents: Cancer and Reproductive Harm;
www.p65warnings.ca.gov
- Vehicle Fitment:
- 2009, 2010, 2011, 2012, 2013, 2014
